6m mobile solar cctv trailer system

6m mobile solar cctv trailer system

6m mobile solar cctv trailer system

Product Details:

Place of Origin: china
Brand Name: PHT
Certification: ISO, CE
Model Number: PHT-SMCT-6000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 8500
Packaging Details: box
Delivery Time: 20 days
Payment Terms: TT
Supply Ability: 100units/month
Contact Now
Detailed Product Description

Item #: PHT-MSCT-6000

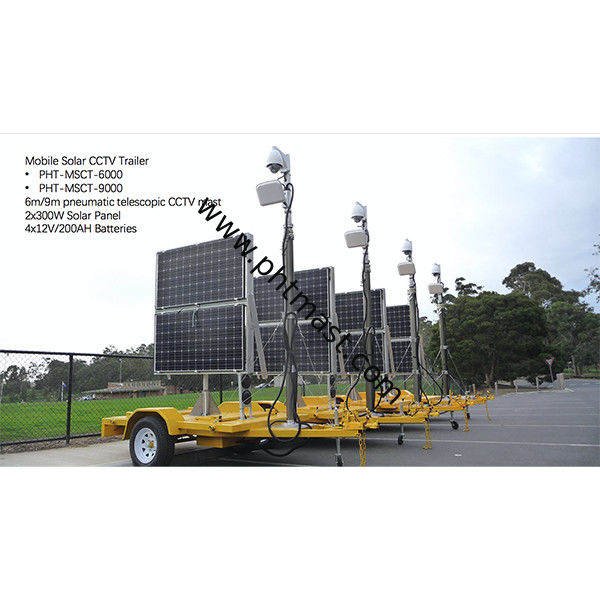

6m Mobile Solar CCTV Trailer System
6m Locking/non locking Pneumatic Telescoping Mast with CCTV internal spiral cables mounted.
2x300W Solar Panel, 4x200AH Batteries, PWM solar power charge controller, DC 12V Power Output
1.3mW x 3.8mL Mobile Trailer, Heavy Duty Steel Welded



CCTV Mast Specification:

1> Product Name: 6m CCTV Locking Mast

2> Internal Cable:  2x 2.5mm + 2x 1.5mm + 1x CAT6 + 1x RG 59 (75 Ohm) coaxial video cable

3> Item #: CCTV-90603060

4> Extended Height: 6m

5> Retracted Height: 2.35m

6> Top Head Load: 100kg

7> Collar Style: Lockable

8> Max Working Pressure: 0.25Mpa

9> Number of sections: 3

10> Section Dia.: 82mm, 98mm, 118mm

11> Mast Weight: 40kg approx

12> Mounting: vehicle mounting
