Place of Origin: | China |
Brand Name: | PHT |
Certification: | ISO9001 2008 |
Model Number: | PHT-70105090 |
Minimum Order Quantity: | 1 |
---|---|
Price: | 1 |
Packaging Details: | wooden box with iron protect bars |
Delivery Time: | within 20 days |
Payment Terms: | TT/Paypal |
Supply Ability: | 200units/month |

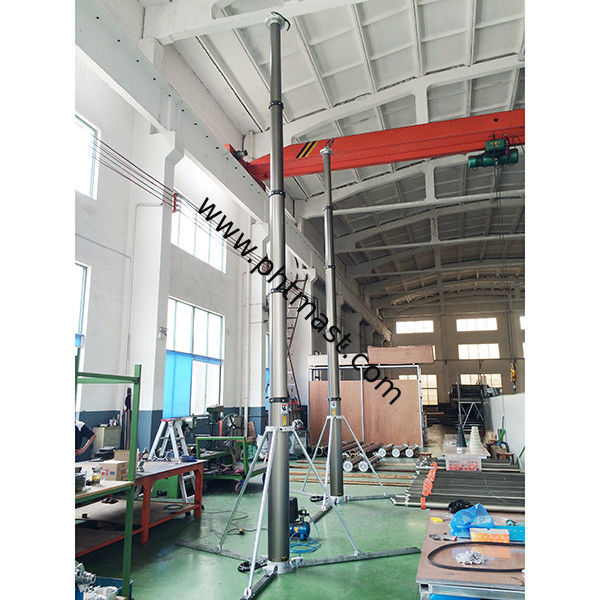

Product Name: 9m Heavy Duty High Lighting Pneumatic Telescopic Masts
1> Item #: 70105090-12x2.5 mm2
2> Extended Height: 9m (29.5 ft)
3> Retracted Height: 2.5m (8.2 ft)
4> Head Load Capacity: 300kg (660 lbs)
5> Working Temperature: -55~850C
6> Working air pressure: 0.2Mpa/29PSI
7> Number of sections: 5 sections
8> Base Section Dia. 229mm ( 9.02 in)
9> Internal Spiral Cables: 12x 2.5 mm2 RVV cables mounted (AWG 13)
10> Mast Weight: 115kg (253 lb)
11> Top Flange, Bottom Flange Supplied
12> Optional: lamps moungting bars, tripod mounting brackets
