| Place of Origin: | China |
| Brand Name: | GEPU |
| Certification: | ISO/CE |
| Model Number: | GEPU-HMTS-18 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 15000~20000 / unit |
| Packaging Details: | 20' container |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5 units/month |
| Mast Extend Height: | 18m | Mast Payloads: | 100kg |
|---|---|---|---|
| Mast Retracted Height: | 3.2m | Mast Style: | Pneumatic Telescopic Mast |
| Collar Style: | Lockable Collar | Mast Sections: | 8 Sections |
| Section Dia.: | 82mm~229mm | Mast Materials: | Aluminum Alloy 6063T5 |
| Trailer Dimension: | 385cmL X 195cmW X 165cmH | Trailer Materials: | Steel With Black Color Coated |
| Mast Tilt Over System: | Hydraulic Ram Tilt Over System | Hydraulic Control System: | AC220V/50Hz Electric Motor And Manual Pump |
| Electric Air Compressor: | AC220V/50hz | System Working Wind Speed: | <80km/h |
| System Weight: | 1100kg Approx. |
Item #: PHT-HMTS-18

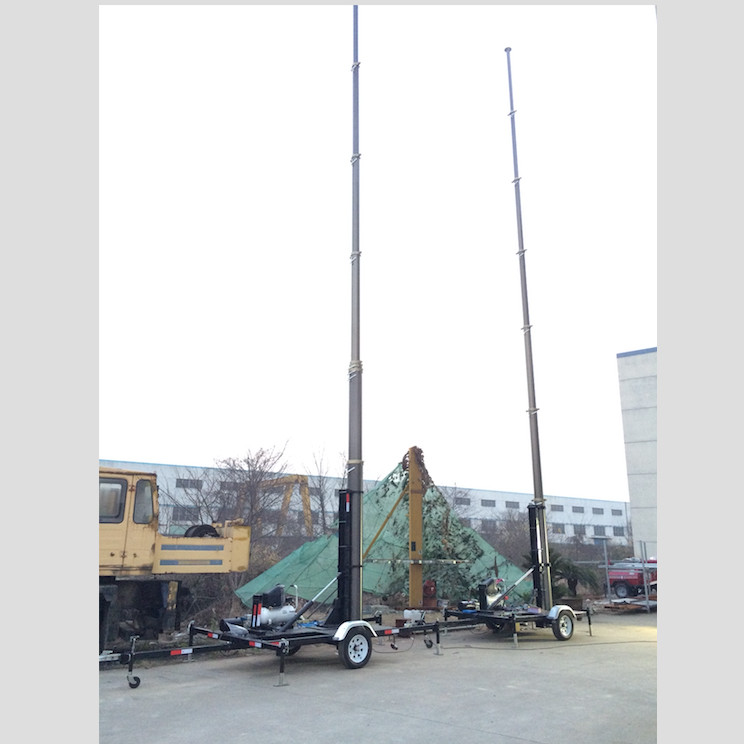

18m Mast Mobile Trailer System
Hydraulic Mobile Trailer System for 18m heavy duty mast lifting from horizontal to vertical.
Electric air compressor for mast extending/retracting
18m pneumatic telescopic mast, 100kg payloads, lockable/ non-lockable
System retract dimension: 385cmL x 180cmW x 165cmH
Pneumatic Telescopic Mast Specification:
18m Locking Pneumatic Telescopic Mast 100kg payloads
1> Item #: PHT-90108180
2> Payloads: 100kg max.
3> Extended Height: 18m
4> Retracted Height: 3.2m
5> Working air pressure: 0.2Mpa/29PSI
6> Working temperature: -20~85 Celsius degrees
7> Number of sections: 8 sections
8> Section dia. 82~229mm
9> Materials: Aluminum alloy 6063T5
10> Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe.
11> Mast weight: 250kg approx.
Hydraulic Trailer dimension:
travel dimension: 385cmL x 196cmW x 165cmH (mast in horizontal)
work dimension: 523cmL x 323cmW x 165cmH (mast in horizontal)
single heavy duty trailer axle,4 heavy duty lifting jacks
Hydraulic Trailer Specification:
Hydraulic lifting system: 3 Tons hydraulic cylinder with 750W 220V/50Hz motor with support beam for mast tilt from horizontal to vertical and from vertical to horizontal
(electric motor hydraulic unit with manual operation back up)
Electric air compressor: PUMA-2025 electric air compressor for mast extending/retracting, air control valve included.
