Name: 21m lockable pneumatic telescopic mast- 50kg payloads- 3m retracted height
Brand: SUZHOU GEPU PRECISION MACHIENRY CO.,LTD.
SKU: PHT-90A11210
Price: 9000 USD
Availability: InStock

Home Products Lockable Telescopic Mast

21m lockable pneumatic telescopic mast- 50kg payloads- 3m retracted height

Product Details:

Place of Origin:	China
Brand Name:	PHTmast
Certification:	ISO/CE
Model Number:	PHT-90A11210

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	9000
Packaging Details:	box
Delivery Time:	20 days
Payment Terms:	TT
Supply Ability:	200units/month

Contact Now

Detailed Product Description

Item #: PHT-90A11210

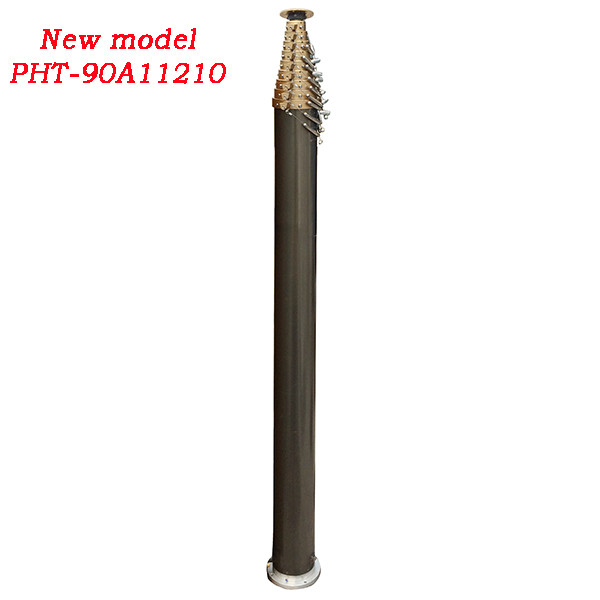

21m lockable pneumatic telescopic mast.
this mast extend 21m high with 3m retracted height and can support 50kg payloads.
The mast was composed of 11 sections with 66mm~279mm section out diameter, and weight 320kg approx. This mast is designed for Philippine client for antenna equipment and less retracted height requirements.

Product Name:21m Locking Pneumatic Telescopic Mast-50kg head loads

1> Item #: PHT-90A11210
2> Extended Height: 21m

3> Retracted Height: 3.0m

4> Head Loads: 50 kgs

5> Working pressure: 0.2Mpa/29PSI

6> Working temperature: -25~85 deg.C.

7> Sections: 11 sections ( Section Dia. 66mm~279mm)
8> Materials: Aluminum alloy 6063T5

9> Mast Weight: 320kgs approx.
10> Default Accessories: 1 x Top flange, 1 x Bottom flange, 1x air hose pipe
11> Option accessories: electric air compressor, guying rope kits, ground mounting tripod, guying ropes
