| Place of Origin: | China |
| Brand Name: | PHT |
| Certification: | ISO/CE |
| Model Number: | PHT-90111180 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 5500~6500/unit EXW |
| Packaging Details: | one unit per shipping crate box 320cmL x 47cmW x 55cmH, approx. 250kg in gross weight |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 units per month |
| Extend Height: | 18m | Retract Height: | 3m |
|---|---|---|---|
| Payloads: | 30kg | Materials: | Aluminum Alloy 6063 |
| Sections: | 11 Sections (36mm~229mm Dia.) | Working Air Pressure: | 0.2Mpa/29PSI |
| Weight: | 180kg Approx. |

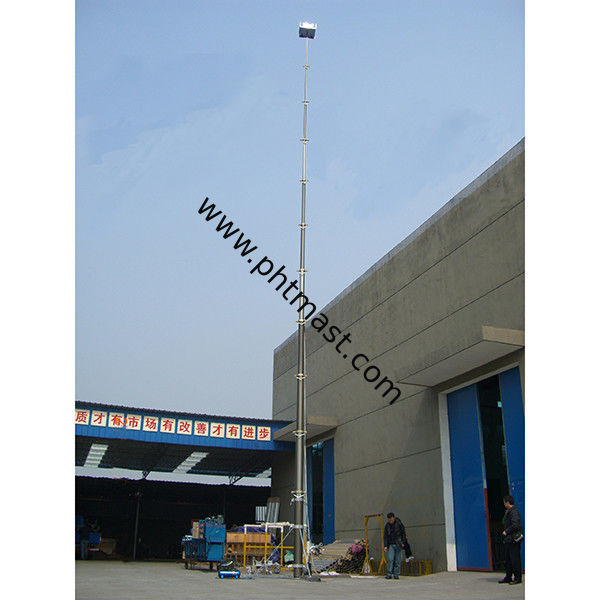

Product Name:18m Locking Pneumatic Telescopic Masts
Style: Auto-Locking Collar
1> Item #: PHT-90111180
2> Extended Height: 18m
3> Retracted Height: 2.75m
4> Head Loads: 30 kgs
5> Maximum working pressure: 0.2Mpa/29PSI
6> Working temperature: -25~850C
7> Sections: 11 sections ( Base tube 229mm diameter)
8> Mast Weight: 180kgs approx.
9> Default Accessories: 1 x Top flange, 1 x Bottom flange, 1x air hose pipe
Optional Accessories:
3x4 guying lines with stakes
AC 220/50Hz Puma Brand electric air compressor with 80L/m air flow rate
Ground Mounting Tripod
Air Control Panel with air filters
other models available:
| Part # | Payload | Extended Height | Retracted Height | Mast Weight | Nos. of Sections | Tube Diameter | Collar Type | Maximum Operate Pressure | Note |
| 90A13300 | 30kg/66lb | 30m/100’ | 3.9m/12.8’ | 400kg/880lb | 13 | 36~279mm/1.42~11" | Locking | 0.2MPa/29PSI | |
| 90A10250 | 100kg/220lb | 25m/82’ | 3.9m/12.8’ | 350kg/770lb | 10 | 82~279mm/3.23~11" | Locking | 0.2MPa/29PSI | |
| 90A10200 | 100kg/220lb | 20m/65.6’ | 3.4m/11.2’ | 280kg/616lb | 10 | 82~279mm/3.23~11" | Locking | 0.2MPa/29PSI | |
| 90A09210 | 150kg/330lb | 21m/68.9’ | 3.3m/10.8’ | 310kg/682lb | 9 | 98~279mm/3.86~11" | Locking | 0.2MPa/29PSI | |
| 90A07180 | 300kg/660lb | 18m/59’ | 3.7m/12.1’ | 323kg/712lb | 7 | 140~279mm/5.5~11" | Locking | 0.2MPa/29PSI | |
| 90A07150 | 300kg/660lb | 15m/49.2’ | 3m/9.84’ | 263kg/580lb | 7 | 140~279mm/5.5~11" | Locking | 0.2MPa/29PSI | |
| 90A06120 | 400kg/880lb | 12m/39.3’ | 2.75m/9’ | 233kg/514lb | 6 | 160~279mm/6.3~11" | Locking | 0.2MPa/29PSI | |
| 90111300 | 10kg/22lb | 30m/98.4’ | 4.2m/13.8’ | 280kg/616lb | 11 | 36~229mm/1.42~9.02" | Locking | 0.2MPa/29PSI | |
| 90111250 | 30kg/66lb | 25m/82’ | 3.35m/11’ | 240kg/528lb | 11 | 36~229mm/1.42~9.02" | Locking | 0.2MPa/29PSI | |
| 90111210 | 30kg/66lb | 21m/68.9’ | 3.1m/10.2’ | 212kg/466lb | 11 | 36~229mm/1.42~9.02" | Locking | 0.2MPa/29PSI | |
| 90111180 | 30kg/66lb | 18m/59’ | 2.8m/9.2’ | 195kg/429lb | 11 | 36~229mm/1.42~9.02" | Locking | 0.2MPa/29PSI | |
| 90111150 | 30kg/66lb | 15m/49.2’ | 2.45m/8’ | 175kg/385lb | 11 | 36~229mm/1.42~9.02" | Locking | 0.2MPa/29PSI |
