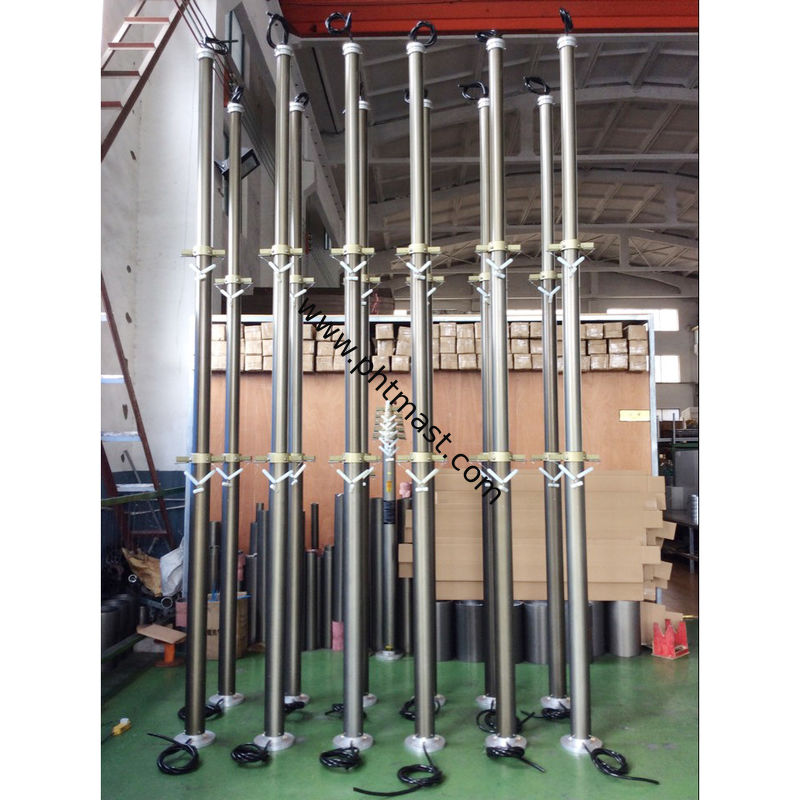

CCTV Mast,Security Mast,Camera Mast,Vedio Mast,Surveillance Mast
1> Item #: CCTV-90603045
2> Internal Spiral Cables: 2x2.5mm2+2x1.5mm2+1xCAT6 cable+1xRG59 Coaxial Video Cable 75 Ohm
3> Extended Height: 4.5m (14.8 ft)
4> Retracted Height: 1.8m (5.9 ft)
5> Maximum Head Loads: 100kg (220 lbs) head loads
6> Working air pressure: 0.2Mpa/29PSI
7> Working temperature:-25~850C (-55~850C available)
8> Number of sections: 3 sections
9> Base section Dia. 118mm (4.65 inch)
10> Materials: Aluminum Alloy 6063/T5
11> Mast Weight: approx. 30kg ( 88 lbs )
12> Accessories: Top flange, bottom flange, air hose pipe
Optional Accessories:
DC 12V electric air compressor
DC24V electric air compressor
AC220~240V, 50/60Hz
Air control panel with air filters
side mounting brackets
tripod ground mounting brackets
