9m Security Camera Mounting Pneumatic Telescopic Masts-CCTV Telescopic Mast-China PHTmast

9m Security Camera Mounting Pneumatic Telescopic Masts-CCTV Telescopic Mast-China PHTmast

9m Security Camera Mounting Pneumatic Telescopic Masts-CCTV Telescopic Mast-China PHTmast

Product Details:

Place of Origin: China
Brand Name: PHT
Certification: ISO9001 2008
Model Number: CCTV-70405090

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1
Packaging Details: wooden box with iron protect bars
Delivery Time: within 20 days
Payment Terms: TT/Paypal
Supply Ability: 200units/month
Contact Now
Detailed Product Description

Item #: CCTV-70405090
9m standard Telescopic CCTV mast
Internal Spiral Cables: 3x1.5sq.mm for AC Power+ 2x2.5sq.mm for DC Power + 2x RG6 Video Cable + 1x CAT6 Cable
Application for CCTV

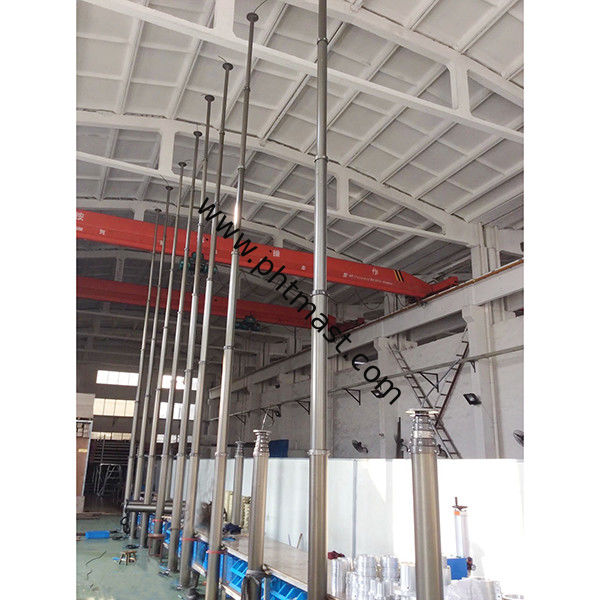

9m CCTV Pneumatic Telescopic Masts

1> Item #: CCTV-70405090

2> Internal Spiral Cables: 3x1.5sq.mm for AC Power+ 2x2.5sq.mm for DC Power + 2x RG6 Video Cable + 1x CAT6 Cable

3> Extended Height: 9m (29.5 ft)

4> Retracted Height: 2.5m (8.2 ft)

5> Maximum Head Loads: 70kg  (154 lbs) head loads

6> Working air pressure: 0.2Mpa/29PSI

7> Working temperature:-55~850C

8> Number of sections: 5 sections

9> Base section Dia. 160mm (6.3 inch)

10> Materials: Aluminum Alloy 6063/T5

11> Mast Weight: approx. 83kg ( 182 lbs )

12> Accessories: Top flange, bottom flange, air hose pipe

Optional Accessories:

DC 12V electric air compressor

DC24V electric air compressor

AC220~240V, 50/60Hz

Air control panel with air filters

side mounting brackets

tripod ground mounting brackets
