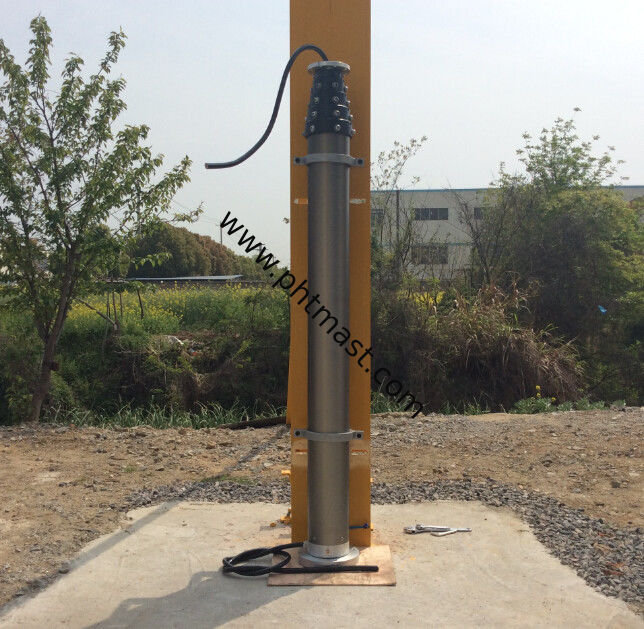

PHT-mast testing
Product Name: Heavy Duty Lighting Mast
1> Item #: PHT-70405065
2> Extended Height: 6.5m ( 21.3 ft)
3> Retracted Height: 1.9m (6.23 ft)
4> Head Loads: 100kgs ( 220 lbs)
5> Internal Spiral Cables:RVV 2x1.5mm2 + 8x2.5mm2
6> Maximum working air pressure: 0.2Mpa/29PSI
7> Working temperature: -55~850C
8> Number of sections: 5 sections
9> Base section Dia.: 160mm (6.3 inch)
10> Accessories: Top flange, Bottom Flange
11> Optional Accessories: rotate base, tripod ground mounting kits, side mounting, Environment protect cover
