10m telescoping masts

10m telescoping masts

Product Details:

Place of Origin: china
Brand Name: PHT
Certification: ISO, CE
Model Number: PHT-80507100

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 2500
Packaging Details: box
Delivery Time: 20 days
Payment Terms: TT
Supply Ability: 200units/month
Contact Now
Detailed Product Description

10m Pneumatic Telescopic Masts

Item #: PHT-80507100

1> Extended Height: 10m

2> Retracted Height: 2.3m

3> Head Loads: 30 kgs maximum

4> Working air pressure: 0.1MPa/14.5PSI

5> Working Temperature: -25~85 ℃

6> Number of sections: 7 sections

7> Section O.D. range: 36mm~140mm

8> Materials: Aluminum Alloy 6063/T5

9> Default Accessories: 1x Top Flange, 1x Bottom Flange, 1x air hose pipe

10> Mast Net Weight: 50 kgs approx.


bottom flange specification:                                            Top flange specification:

bottom flangemasttopflange


Optional Accessories:


Electric Air compressor, order item #: PHT-111080


Air Control Manual, order item #: PHT-2001

air control manual

Side Mounting Bracket, order #: PHT-7140

side mounting

Ground Tripod Mounting Bracket, order #: PHT-9140

ground mounting tripod

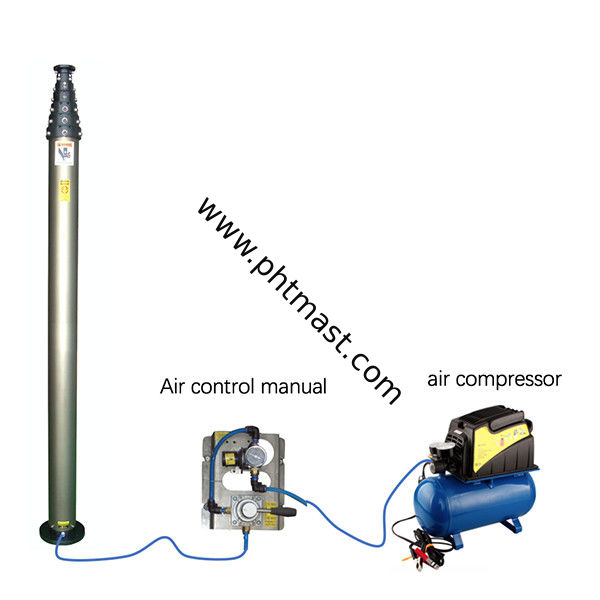

Mast Air Supply Connection

80507100 air control system
