| Place of Origin: | china |
| Brand Name: | PHT |
| Certification: | ISO, CE |
| Model Number: | PHT-80507100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2500 |
| Packaging Details: | box |
| Delivery Time: | 20 days |
| Payment Terms: | TT |
| Supply Ability: | 200units/month |

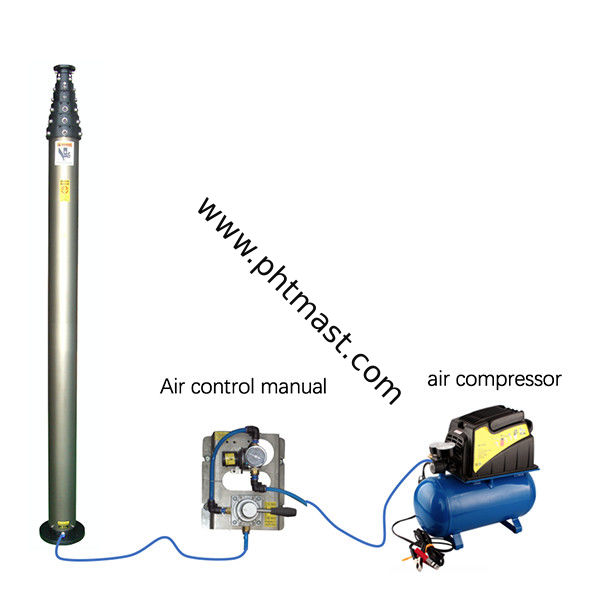

10m Pneumatic Telescopic Masts
Item #: PHT-80507100
1> Extended Height: 10m
2> Retracted Height: 2.3m
3> Head Loads: 30 kgs maximum
4> Working air pressure: 0.1MPa/14.5PSI
5> Working Temperature: -25~85 ℃
6> Number of sections: 7 sections
7> Section O.D. range: 36mm~140mm
8> Materials: Aluminum Alloy 6063/T5
9> Default Accessories: 1x Top Flange, 1x Bottom Flange, 1x air hose pipe
10> Mast Net Weight: 50 kgs approx.
bottom flange specification: Top flange specification:
Optional Accessories:
|
Electric Air compressor, order item #: PHT-111080
|
Air Control Manual, order item #: PHT-2001
|
|
Side Mounting Bracket, order #: PHT-7140
|
Ground Tripod Mounting Bracket, order #: PHT-9140
|
Mast Air Supply Connection
