30m Height 30kg payloads Lockable Pneumatic Telescopic Mast

30m Height 30kg payloads Lockable Pneumatic Telescopic Mast

    • 30m Height 30kg payloads Lockable Pneumatic Telescopic Mast
    • 30m Height 30kg payloads Lockable Pneumatic Telescopic Mast
    • 30m Height 30kg payloads Lockable Pneumatic Telescopic Mast
    • 30m Height 30kg payloads Lockable Pneumatic Telescopic Mast
    • 30m Height 30kg payloads Lockable Pneumatic Telescopic Mast
  • 30m Height 30kg payloads Lockable Pneumatic Telescopic Mast

    Product Details:

    Place of Origin: China
    Brand Name: PHT
    Certification: ISO9001 2008
    Model Number: 90A13300

    Payment & Shipping Terms:

    Price: negotiation
    Packaging Details: wooden box with iron protect bars
    Delivery Time: within 20 days
    Payment Terms: TT/Paypal
    Supply Ability: 200units/month
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description
    High Light:

    telescopic mast

    ,

    pneumatic mast

    ,

    telecommunication tower mast

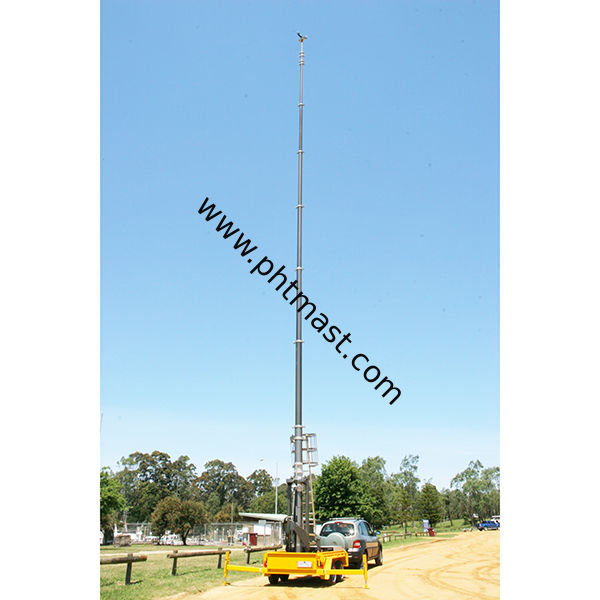

    30m Height (Model: PHT-90A13300)

    1> Extended Height: 30m (98 feet)

    2> Retracted Height: 4m (13 feet)

    3> Head Load Duty: 30kgs (66 lbs) maximum

    4> Collar Style: Locking Collar

    5> Number of Sections: 13 sections

    6> Section Tube O.D. : 36mm~279 mm/ 1.4 ~ 11 inch

    7> Guying Lines: 3x4 (3layers, 4ways)

    8> Top Flange, Bottom Flange, Air hose Pipes

    9>Materials: Aluminum Alloy AL-6063/T5 finish

    10> Mast Weight: 350kgs (771 lbs) approx

    11> Wind Speed: 100km/h (with guying lines)

    12> Max working air pressure: 0.2Mpa
