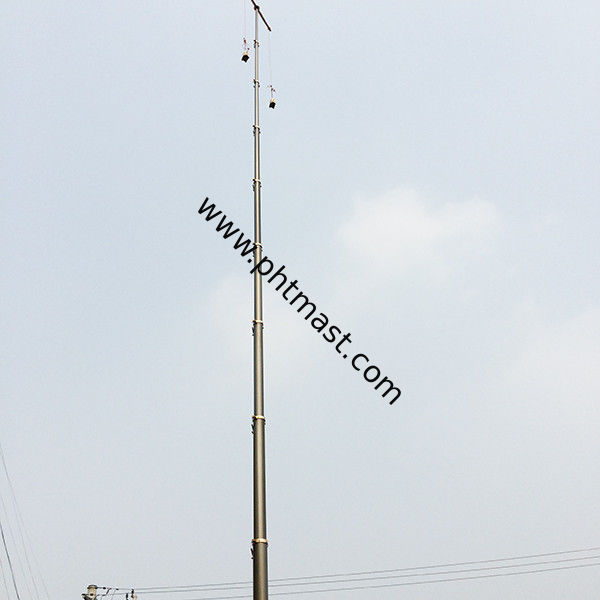

70kg payload-25m Lockable Pneumatic Telescopic Mast model 90A11250-PHTmast

70kg payload-25m Lockable Pneumatic Telescopic Mast model 90A11250-PHTmast

    • 70kg payload-25m Lockable Pneumatic Telescopic Mast model 90A11250-PHTmast
    • 70kg payload-25m Lockable Pneumatic Telescopic Mast model 90A11250-PHTmast
    • 70kg payload-25m Lockable Pneumatic Telescopic Mast model 90A11250-PHTmast
    • 70kg payload-25m Lockable Pneumatic Telescopic Mast model 90A11250-PHTmast
    • 70kg payload-25m Lockable Pneumatic Telescopic Mast model 90A11250-PHTmast
    • 70kg payload-25m Lockable Pneumatic Telescopic Mast model 90A11250-PHTmast

    Product Details:

    Place of Origin: China
    Brand Name: PHT
    Certification: ISO9001 2008
    Model Number: 90A11250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: wooden box with iron protect bars
    Delivery Time: within 20 days
    Payment Terms: TT/Paypal
    Supply Ability: 200units/month
    Contact Now
    Detailed Product Description

    25m Locking Pneumatic Telescopic Masts-70kg Head Loads



    1>Item #: 90A11250

    2>Extended Height: 25m Height

    3>Retracted Height: 3.8m

    4>Head Loads: maximum 70kg



    5>Maximum Operation Pressure: 0.2Mpa/ 29PSI

    6>Working Temperature: -55~800C

    7>Nos. of sections: 11 sections

    8>Section Dia.: 66mm~279mm

    9> Default Accessories: 1 x Top flange, 1 x Bottom flange, 1x air hose pipe

    10> Materials: Aluminum Alloy 6063T5

    11> Mast Weight: 350kg approx.

    Optional Accessories:

    3x4 guying lines with stakes

    Ground Mounting Tripod
