21m lockable pneumatic telescopic mast- 50kg payloads- 3m retracted height

21m lockable pneumatic telescopic mast- 50kg payloads- 3m retracted height

21m lockable pneumatic telescopic mast- 50kg payloads- 3m retracted height

Product Details:

Place of Origin: China
Brand Name: PHTmast
Certification: ISO/CE
Model Number: PHT-90A11210

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 9000
Packaging Details: box
Delivery Time: 20 days
Payment Terms: TT
Supply Ability: 200units/month
Contact Now
Detailed Product Description

Item #: PHT-90A11210

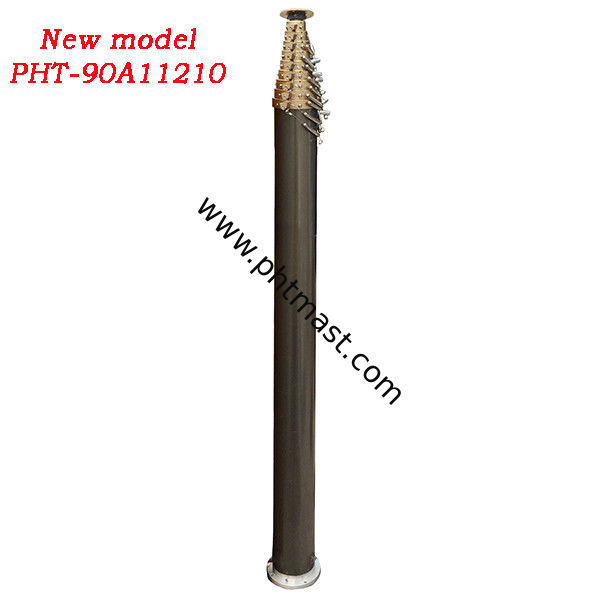

21m lockable pneumatic telescopic mast.
this mast extend 21m high with 3m retracted height and can support 50kg payloads.
The mast was composed of 11 sections with 66mm~279mm section out diameter, and weight 320kg approx. This mast is designed for Philippine client for antenna equipment and less retracted height requirements.

Product Name:21m Locking Pneumatic Telescopic Mast-50kg head loads



  • 1> Item #: PHT-90A11210
  • 2> Extended Height: 21m
  • 3> Retracted Height: 3.0m
  • 4> Head Loads: 50 kgs
  • 5> Working pressure: 0.2Mpa/29PSI
  • 6> Working temperature: -25~85 deg.C.
  • 7> Sections: 11 sections ( Section Dia. 66mm~279mm)
  • 8> Materials: Aluminum alloy 6063T5
  • 9> Mast Weight: 320kgs approx.
  • 10> Default Accessories: 1 x Top flange, 1 x Bottom flange, 1x air hose pipe
  • 11> Option accessories: electric air compressor, guying rope kits, ground mounting tripod, guying ropes

Other similar model:

  • 25m Locking mast with 3.7 m retract height available, Item: PHT-90A11250
  • 18m Locking mast with 2.75m retract height available, item: PHT-90A11180
  • 15m Locking mast with 2.45m retract height available, item: PHT-90A11150
