Item #: PHT-90306080
8m extended height/ 2m retracted height
100kg payloads/ 6 sections / base section dia. 180mm
mast weight: 80kg approx.
materials: aluminum alloy 6063T5
application for lighting, antenna, broadcasting, CCTV
Specification:

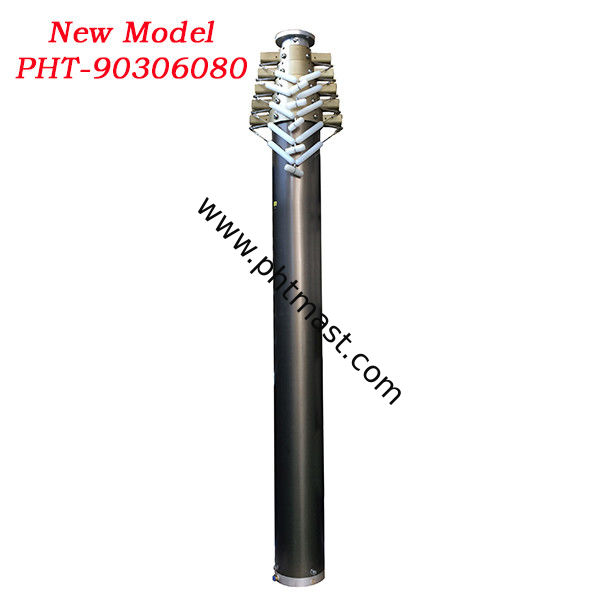

Product Name: 8m Locking Pneumatic Telescopic Mast 100kg Head Loads
1> Item #: PHT-90306080
2> Extended Height: 8m
3> Retracted Height: 2m
4> Head Loads: 100 kgs
5> Working Air Pressure: 0.2Mpa/29PSI
6> Working Temperature: -25~85℃
7> Number of Sections: 6 sections
8> Section Dia.: 82mm~180mm
9> Materials: Aluminum Alloy 6063T5
10> Mast Weight: 85kgs
11>Default Accessories: 1 x Top flange, 1 x Bottom flange, 1x air hose pipe
