| Place of Origin: | China |
| Brand Name: | GEPU |
| Certification: | ISO/CE |
| Model Number: | GEPU-HMTS-15 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 15000~20000 / unit |
| Packaging Details: | 20' container |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5 units/month |
| Mast Extend Height: | 15m | Mast Payloads: | 150kg |
|---|---|---|---|
| Mast Retracted Height: | 3m | Mast Style: | Pneumatic Telescopic Mast |
| Collar Style: | Lockable Collar | Mast Sections: | 7 Sections |
| Section Dia.: | 98mm~229mm | Mast Materials: | Aluminum Alloy 6063T5 |
| Trailer Dimension: | 385cmL X 195cmW X 165cmH | Trailer Materials: | Steel With Black Color Coated |
| Mast Tilt Over System: | Hydraulic Ram Tilt Over System | Hydraulic Control System: | AC220V/50Hz Electric Motor And Manual Pump |
| Electric Air Compressor: | AC220V/50hz | System Working Wind Speed: | <80km/h |
| System Weight: | 1100kg Approx. |
Item #: PHT-HMTS-15

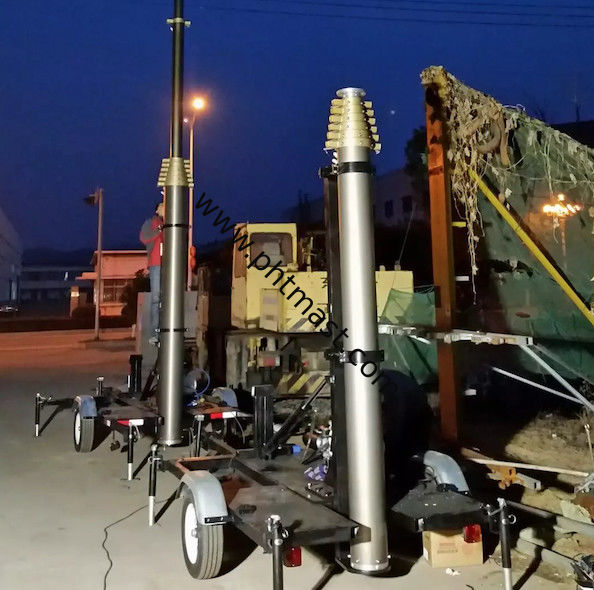

15m Mast Mobile Trailer System
Pneumatic Telescopic Mast 15m height for 150kg payloads, which item #: PHT-90107150
Hydraulic Mobile Trailer System for 15m heavy duty mast lifting from horizontal to vertical.
Electric air compressor for mast extending/retracting
Electric hydraulic control unit and manual hydraulic control combined together.
15m pneumatic telescopic mast specification:
1> Item #: PHT-90107150
2> Extended Height: 15m
3> Retracted Height: 3m
4> Payloads: 150kg max.
5> Working pressure: 0.2Mpa/29PSI
6> Working temperature: -25~85℃
7> Sections: 7
8> Sections dia.: 98mm~229mm
9> Materials: Aluminum alloy 6063T5
10> Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 3x4 guying kits
11> Mast weight: 150kg approx.
Hydraulic Trailer Specification:
Hydraulic lifting system: 3 Tons hydraulic cylinder with 750W 220V/50Hz motor with support beam for mast tilt from horizontal to vertical and from vertical to horizontal
(electric motor hydraulic unit with manual operation back up)
Electric air compressor: PUMA-2025 electric air compressor for mast extending/retracting, air control valve included.
