Place of Origin: | China |
Brand Name: | GEPU |
Certification: | ISO/CE |
Model Number: | GEPU-HMTS-21 |
Minimum Order Quantity: | 1 |
---|---|
Price: | USD 15000~20000 / unit |
Packaging Details: | 20' container |
Delivery Time: | 30 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 5 units/month |
Mast Extend Height: | 21m | Mast Payloads: | 150kg |
---|---|---|---|
Mast Retracted Height: | 3.5m | Mast Style: | Pneumatic Telescopic Mast |
Collar Style: | Lockable Collar | Mast Sections: | 9 Sections |
Section Dia.: | 98mm~279mm | Mast Materials: | Aluminum Alloy 6063T5 |
Trailer Dimension: | 385cmL X 195cmW X 165cmH | Trailer Materials: | Steel With Black Color Coated |
Mast Tilt Over System: | Hydraulic Ram Tilt Over System | Hydraulic Control System: | AC220V/50Hz Electric Motor And Manual Pump |
Electric Air Compressor: | AC220V/50hz | System Working Wind Speed: | <80km/h |
System Weight: | 1100kg Approx. |
Item #: GEPU-HMTS-21

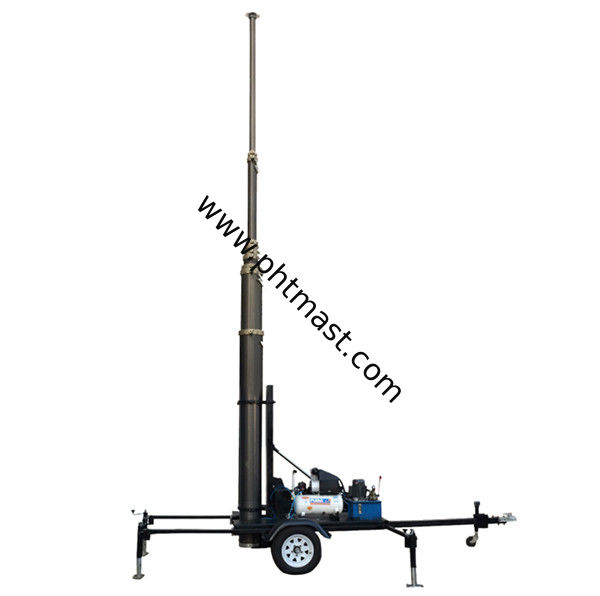

21M Pneumatic Telescopic Mast Mobile Trailer System.
Hydraulic Lifting System for mast tilt from horizontal to vertical
Electric air compressor for mast extend/retract.
21m pneumatic telescopic mast, 150kg payloads, lockable/ non-lockable
System retract dimension: 385cmL x 196cmW x 165cmH
Pneumatic Telescopic Mast Specification:
1> Item #: PHT-90A09210
2> Extended Height: 21m
3> Retracted Height: 3.4m
4> Payloads: 150kg
5> Working air pressure: 0.2Mpa/29PSI max.
6> Working Temperature: -25~85℃
7> Number of sections: 9 sections
8> Section dia. 98~279mm
9> Mast weight: 300kg approx.
Hydraulic Trailer dimension:

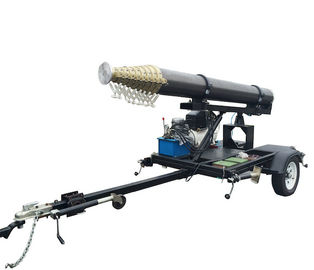

travel dimension: 385cmL x 196cmW x 165cmH (mast in horizontal)
work dimension: 523cmL x 323cmW x 165cmH (mast in horizontal)
single heavy duty trailer axle,4 heavy duty lifting jacks
Hydraulic Trailer Specification:

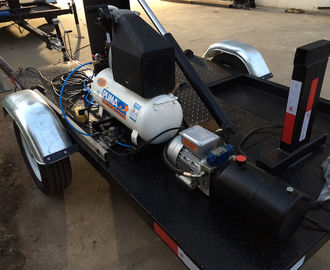

Hydraulic lifting system: 3 Tons hydraulic cylinder with 750W 220V/50Hz motor with support beam for mast tilt from horizontal to vertical and from vertical to horizontal
(electric motor hydraulic unit with manual operation back up)
Electric air compressor: PUMA-2025 electric air compressor for mast extending/retracting, air control valve included.
