mobile surveillance pneumatic telescopic masts

Product Details:

Place of Origin:	China
Brand Name:	PHTmast
Certification:	ISO/CE
Model Number:	CCTV-70406090-2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	3000
Packaging Details:	plywood packing box
Delivery Time:	20 days
Payment Terms:	tt
Supply Ability:	200units/month

Contact Now

Detailed Product Description

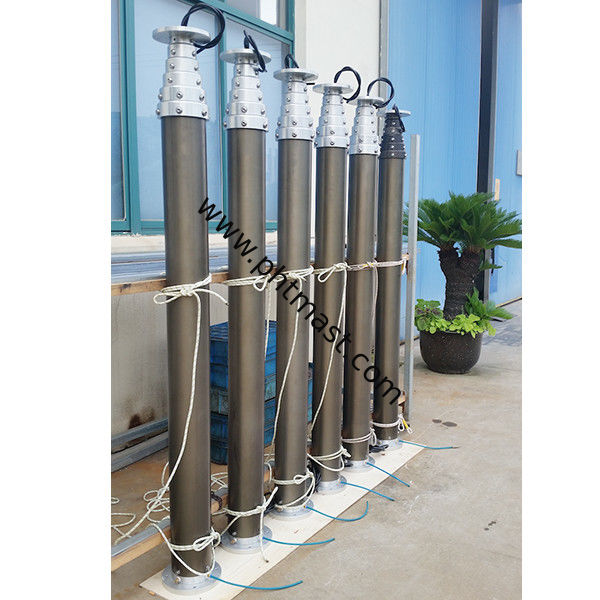

9m CCTV pneumatic telescopic mast

Item #: CCTV-70406090-2

1> Internal cable: 1xCAT6 + 2x1.5 mm cables
2> Maximum Working Pressure: 0.2Mpa
3> Maximum Head Loads: 50kg
4> Retracted Height: 2060mm
5> Extended Height: 9000mm
6> Number of Sections: 6
7> Section Dia. 66mm~160mm
8> Materials: Aluminum Alloy 6063/T5
9> Mast weight: 65kg approx.

10> Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe

11> Packing: one unit per packing box, 241cmL x 36cmW x 43cmH, 90kg in gross weight

12> Optional accessories: electric air compressor, air control manual, side mounting brackets
